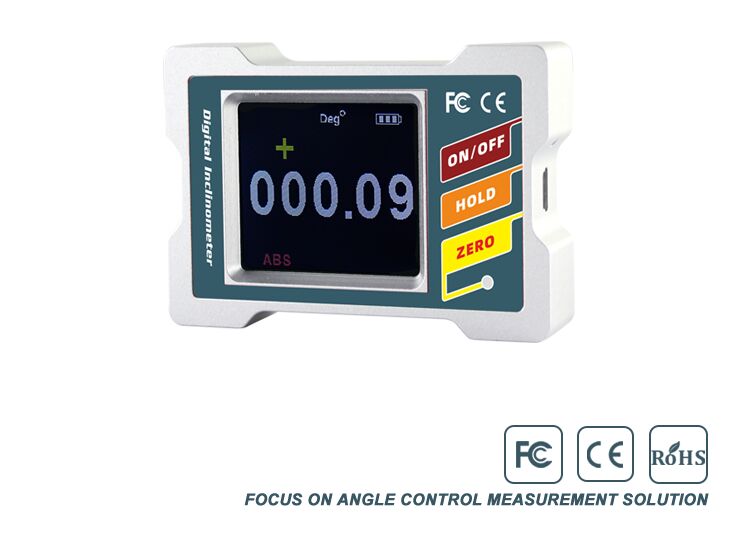

DMI410 Digital Display Inclinometer 2 Axis High Precision LCD Rechargeable Magnetic Adsorption

Name: DMI410 Digital Display Inclinometer 2 Axis High Precision LCD Rechargeable Magnetic Adsorption
Brand: Shenzhen Rion Technology Co., Ltd.
SKU: DMI420/410
Price: 109.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: Guangdong, China

Merknaam: RION

Certificering: CE

Modelnummer: DMI420/410

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1

Prijs: $217.00/Pieces >=1 Pieces

Verpakking Details: digitale hellingsmeter in elke houten kist met spons erin, 20 stuks / ctn

Levertijd: 5-10 werkdagen

Betalingscondities: T/T, Paypal

Levering vermogen: 1000 Stuk/Stukken per Week digitale hellingsmeter in magazijn

Krijg Beste Prijs

Contact nu

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Magnetic Adsorption Digital Inclinometer, LCD Digital Display Inclinometer, 2 Axis Digital Inclinometer


nauwkeurigheid van de hellingsmeter:	0,05°	Pro 360 digitaal niveau:	aflezen met breuken
Meetbereik:	360 graden	Oplossing::	0,01 °
Werktemperatuur:	-20°~ +65°C	Beschermingsklasse:	IP54
Hoge anti-impact:	100G	°/mm de functie van de dubbele eenhedenschakelaar:	Het de kleurenscherm van de nachtvisie fours

nauwkeurigheid van de hellingsmeter:	0,05°
Pro 360 digitaal niveau:	aflezen met breuken
Meetbereik:	360 graden
Oplossing::	0,01 °
Werktemperatuur:	-20°~ +65°C
Beschermingsklasse:	IP54
Hoge anti-impact:	100G
°/mm de functie van de dubbele eenhedenschakelaar:	Het de kleurenscherm van de nachtvisie fours

Beschrijving

DMI410 Digital Display Inclinometer 2 Axis High Precision LCD Rechargeable Magnetic Adsorption

DMI410 Digital Display Inclinometer 2 Axis High Precision LCD Rechargeable Magnetic Adsorption

DMI410 DMI420 DIGITAL DISPLAY INCLINOMETER.pdf

The core of this productis the use of micro-mechanical con-trol principle, dual-core measurement unit, Y-axis can be usedto compensate the X-axis during the measurement process, patented interleaving and temperature compen-sation model algorithms are used to give play to the absolutecalculationof the micro-mechanicalelectronic principle Advan-tages to ensure the long-term stability and repeatability of theinstrument measurement. The special design of the productadopts strong magnetic adsorption installation on the side andbottom, and both sides of the reference can be measured andused normally, which brings great convenience to customers.

Features:

Accuracy:0.05°
Repeatability:0.05° Resolution:0.01°
Measuring range:±180°
Fast response
Data hold on function
Absolute/Relative measurement can switch
Both sides and bottom can measure
Double benchmark strong magnet installation
Working Temperature : -20°~ +65°C
Auto-angle interleaved compensation function
Auto temperature drift compensation
User can calibrate by himself
Built-in rechargable industy battaries
Night vision fours colors screen
IP54protection class
°/mm Dual units switch funciton
100g High anti-impact

Application :

Road slope
Machinery installation
Piping installation
Industrial platform
Turntable testing
Cloud deck angle detection
Production jig
Medical instruments
Building construction Automobile four-wheel testing

PARAMETERS	DMI410 DMI420
Measure axis	Single axis	Dual axis
Angle measure range	±180 °	±90 °
Angle measure accuracy	0.05 °(full range)	0.05 °(full range)
Angle measure resolution	0.01°	0.01°
mm/m measure accuracy	0.9mm/m(full range)	0.9mm/m(full range)
mm/m measure resolution	0.1mm/m	0.1mm/m
LCD visible area size	L40*W32mm
Working temperature	-10℃～ +70℃
Working humidity	85℃
Power supply	3.7V Charging Lithium battery
Ideal charging time	3h
Battery continuous working time	8h(±0.5)
Data output signal	Standard 5Pin USB connector
Anti-vibration	10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance	10grms,10～100Hz
Weight	≤140g
Waterproof level	IP54
Material	Metal aluminum
Size	L83W53H19.2mm

DMI410 Digital Display Inclinometer 2 Axis High Precision LCD Rechargeable Magnetic Adsorption 0

DMI410 Digital Display Inclinometer 2 Axis High Precision LCD Rechargeable Magnetic Adsorption 1
